Home
/
Antennas
/
Base Station Antennas
/
Multi-Band Passive Antennas (MBPA)
Categories
4-ports
6-ports
8-ports
10-ports
12-ports
14-ports
16-ports
18-ports
Filters
Horizontal Beamwidth
65
(53)
RF Connector Quantity
4
(5)
6
(13)
8
(17)
10
(8)
12
(10)
Length m(ft)
0.3-0.9 m (1-3 ft)
(2)
1.2-1.5 m (4-5 ft)
(16)
1.6-2.1 m (6-7 ft)
(21)
2.4-2.7 m (8-9 ft)
(14)
Electrical Tilt Type
Fixed
(1)
RET (Remote)
(52)
53 results found
Compare
Sort By A-Z
Sort By Z-A
APXBL06B_43-CT5
4-Ports, X-Pol, Panel Antenna, 0.6m, 1x698-960/1x1710-2690MHz, 65deg, Fixed Tilt
Compare
Quick view
Close quick view
APXBL06B_43-CT5
4-Ports, X-Pol, Panel Antenna, 0.6m, 1x698-960/1x1710-2690MHz, 65deg, Fixed Tilt

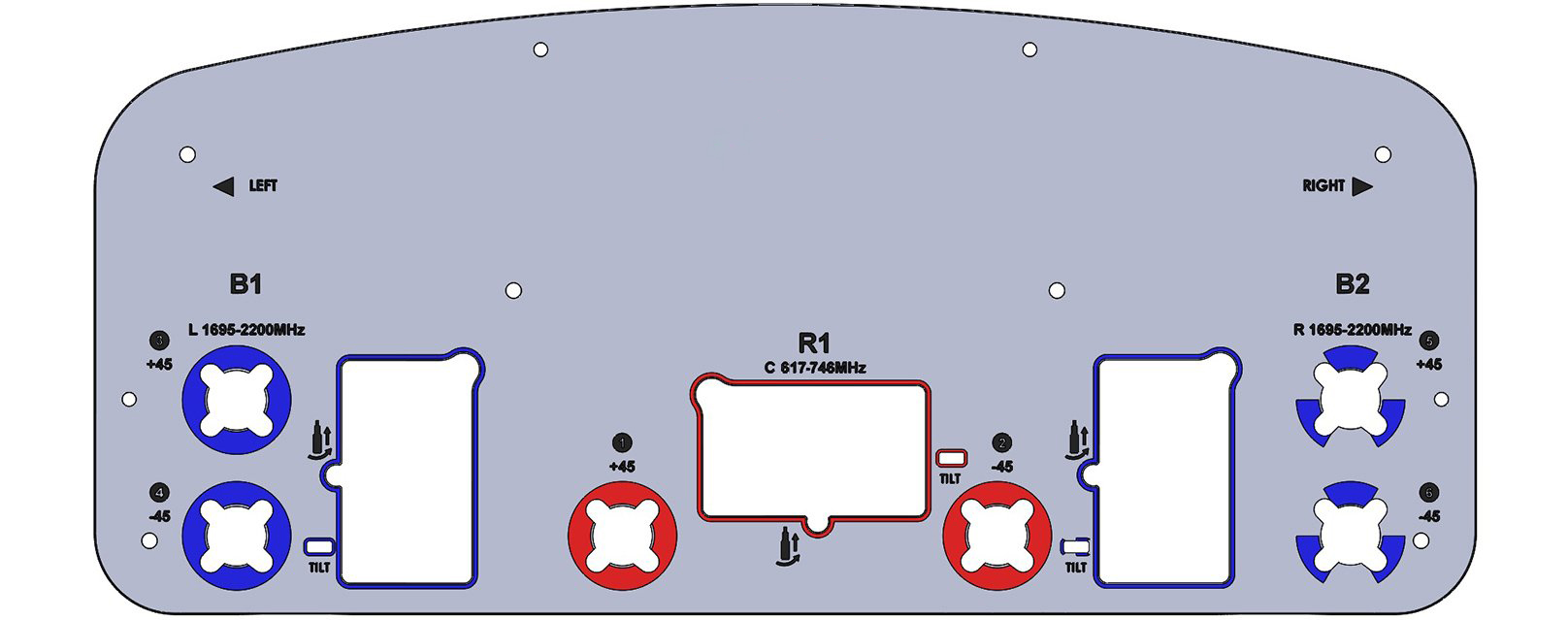

Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 620 x 350 x 200 (24.4 x 13.8 x 7.9)
Weight (Antenna Only),kg (lb)
: 8 (17.6)
Connector type
: 4 x 4.3-10 female/bottom
RF Connector Quantity
: 4
Length m(ft)
: 0.3-0.9 m (1-3 ft)
Electrical Tilt Type
: Fixed
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAA4L18N_43-U-I20
12-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/ 4x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAA4L18N_43-U-I20
12-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/ 4x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 1823 x 499 x 215 (71.8 x 19.7 x 8.5)
Weight (Antenna Only),kg (lb)
: 31 (69)
Connector type
: 12 x 4.3-10 female at bottom
RF Connector Quantity
: 12
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAA4L18_43-U-NA20
12-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/4x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAA4L18_43-U-NA20
12-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/4x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 1829 x 609 x 215 (72 x 24 x 8.5)
Weight (Antenna Only),kg (lb)
: 48 (106)
Connector type
: 12 x 4.3-10 female at bottom + 6 AISG connectors (3 male, 3 female)
RF Connector Quantity
: 12
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAA4L24N_43-U-I20
12-Ports, X-Pol, Panel Antenna, 2.4m, 2x 617-894/ 4x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAA4L24N_43-U-I20
12-Ports, X-Pol, Panel Antenna, 2.4m, 2x 617-894/ 4x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 2432 x 499 x 215 (95.8 x 19.7 x 8.5)
Weight (Antenna Only),kg (lb)
: 37 (81.6)
Connector type
: 12 x 4.3-10 female at bottom
RF Connector Quantity
: 12
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAA4L24_43-U-NA20
12-Ports, X-Pol, Panel Antenna, 2.4m, 2x 617-894/4x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAA4L24_43-U-NA20
12-Ports, X-Pol, Panel Antenna, 2.4m, 2x 617-894/4x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 2436 x 609 x 215 (95.9 x 24 x 8.5)
Weight (Antenna Only),kg (lb)
: 65 (143.3)
Connector type
: 12 x 4.3-10 female at bottom + 6 AISG connectors (3 male, 3 female)
RF Connector Quantity
: 12
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAALL12N_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.2m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAALL12N_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.2m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 1219 x 499 x 215 (48 x 19.7 x 8.5)
Weight (Antenna Only),kg (lb)
: 22 (49)
Connector type
: 8 x 4.3-10 female at bottom
RF Connector Quantity
: 8
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAALL12_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.2m, 2x 617-960/2x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAALL12_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.2m, 2x 617-960/2x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 1219 x 609 x 215 (48 x 24 x 8.5)
Weight (Antenna Only),kg (lb)
: 27 (60)
Connector type
: 8 x 4.3-10 female at bottom
RF Connector Quantity
: 8
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAALL18N_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAALL18N_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 1823 x 499 x 215 (71.8 x 19.7 x 8.5)
Weight (Antenna Only),kg (lb)
: 28.3 (62.4)
Connector type
: 8 x 4.3-10 female at bottom
RF Connector Quantity
: 8
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAALL18_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAALL18_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 1829 x 609 x 215 (72 x 24 x 8.5)
Weight (Antenna Only),kg (lb)
: 42 (93)
Connector type
: 8 x 4.3-10 female at bottom
RF Connector Quantity
: 8
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAALL24_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 2.4m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVAALL24_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 2.4m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/- 45
Dimensions - H x W x D,mm (in)
: 2435 x 610 x 225 (95.9 x 24 x 8.9)
Weight (Antenna Only),kg (lb)
: 54 (119)
Connector type
: 8 x 4.3-10 female at bottom
RF Connector Quantity
: 8
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVAR18_43-C-NA20
Dual Slant Polarized Dual Band (4 Port) Antenna, 617-746/1695-2200MHz, 65deg, 15.0/18.9dBi, 1.8m(6.0ft), VET, RET, 5-19°/2-12° Tilt Range
Compare
Quick view
Close quick view
APXVAR18_43-C-NA20
Dual Slant Polarized Dual Band (4 Port) Antenna, 617-746/1695-2200MHz, 65deg, 15.0/18.9dBi, 1.8m(6.0ft), VET, RET, 5-19°/2-12° Tilt Range
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/-45
Dimensions - H x W x D,mm (in)
: 1726 x 405 x 228 (68 x 16 x 9)
Weight (Antenna Only),kg (lb)
: 21.5 (47.4)
Connector type
: 4 x 4.3-10 female on back + 4 AISG connectors (2 male, 2 female)
RF Connector Quantity
: 4
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVARR15_43-C-NA20
Dual Slant Polarized Triple Band (6 Port) Antenna, 617-746/1695-2200/1695-2200MHz,65 deg, 14.7/18.8/19.1dBi, 1.5m (5ft), VET, RET, 5-20°/2-12°/2-12° Tilt Range
Compare
Quick view
Close quick view
APXVARR15_43-C-NA20
Dual Slant Polarized Triple Band (6 Port) Antenna, 617-746/1695-2200/1695-2200MHz,65 deg, 14.7/18.8/19.1dBi, 1.5m (5ft), VET, RET, 5-20°/2-12°/2-12° Tilt Range
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: +/-45°
Dimensions - H x W x D,mm (in)
: 1524 x 500 x 216 (60 x 19.7 x 8.5)
Weight (Antenna Only),kg (lb)
: 27.8 (61.1)
Connector type
: 6 x 4.3-10 Long Neck Female/Bottom + 6 AISG RET connectors (3 male, 3 female)
RF Connector Quantity
: 6
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB3L18B2_43-C-I20
8-Ports, X-Pol, Panel Antenna, 1.8m, 1x 690-960/3x 1695-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVB3L18B2_43-C-I20
8-Ports, X-Pol, Panel Antenna, 1.8m, 1x 690-960/3x 1695-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1798 x 398 x 158 (70.8 x 15.7 x 6.2)
Weight (Antenna Only),kg (lb)
: 26.5 (58.4)
Connector type
: 8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 8
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB3L20B_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.0m, 1x 698-960/3x 1710-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVB3L20B_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.0m, 1x 698-960/3x 1710-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1950 x 350 x 200 (76.8 x 13.8 x 7.9)
Weight (Antenna Only),kg (lb)
: 22.5 (49.6)
Connector type
: 8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 8
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB3L26B2_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.6m, 1x690-960/3x1695-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVB3L26B2_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.6m, 1x690-960/3x1695-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2498 x 398 x 158 (98.3 x 15.7 x 6.2)
Weight (Antenna Only),kg (lb)
: 31.5 (69.4)
Connector type
: 8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 8
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB3L26B_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.6m, 1x 690-960/3x 1710-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVB3L26B_43-C-I20
8-Ports, X-Pol, Panel Antenna, 2.6m, 1x 690-960/3x 1710-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2690 x 350 x 200 (105.9 x 13.8 x 7.9)
Weight (Antenna Only),kg (lb)
: 32.5 (71.7)
Connector type
: 8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 8
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB4L15B_43-C-I20
10-Ports, X-Pol, Panel Antenna, 1.5m, 1x 698-960/4x 1710-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVB4L15B_43-C-I20
10-Ports, X-Pol, Panel Antenna, 1.5m, 1x 698-960/4x 1710-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1490 x 350 x 200 (58.7 x 13.8 x 7.9)
Weight (Antenna Only),kg (lb)
: 20.9 (46.1)
Connector type
: 10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 10
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB4L20B_43-C-I20
10-Ports, X-Pol, Panel Antenna, 2.0m, 1x698-960/4x1710-2690, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVB4L20B_43-C-I20
10-Ports, X-Pol, Panel Antenna, 2.0m, 1x698-960/4x1710-2690, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1950 x 350 x 200 (76.8 x 13.8 x 7.9)
Weight (Antenna Only),kg (lb)
: 25 (55.1)
Connector type
: 10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 10
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB4L26B_43-C-I20
10-Ports, X-Pol, Panel Antenna, 2.6m, 2x 698-960/4x 1710-2690MHz, 65deg, Integrated RET, Site Sharing Optional
Compare
Quick view
Close quick view
APXVB4L26B_43-C-I20
10-Ports, X-Pol, Panel Antenna, 2.6m, 2x 698-960/4x 1710-2690MHz, 65deg, Integrated RET, Site Sharing Optional
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2690 x 350 x 200 (105.9 x 13.8 x 7.9)
Weight (Antenna Only),kg (lb)
: 34.5 (76.1)
Connector type
: 10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 10
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVB4L26V_43-C-I20
10-port Antenna, 2.6m, 1x698-960/4x1710-2690, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVB4L26V_43-C-I20
10-port Antenna, 2.6m, 1x698-960/4x1710-2690, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2690 x 350 x 200 (105.9 x 13.8 x 7.9)
Weight (Antenna Only),kg (lb)
: 34.5 (76.1)
Connector type
: 10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 10
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBB3L15H_43-C-I20
10-Ports, X-Pol, Panel Antenna, 1.5m, 2x 690-960/3x 1695-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBB3L15H_43-C-I20
10-Ports, X-Pol, Panel Antenna, 1.5m, 2x 690-960/3x 1695-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1498 x 468 x 168 (59 x 18.4 x 6.6)
Weight (Antenna Only),kg (lb)
: 24.5 (54)
Connector type
: 10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 10
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBB3L26H_43-C-I20
10-Ports, X-Pol, Panel Antenna, 2.6m, 2x 690-960/3x 1695-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBB3L26H_43-C-I20
10-Ports, X-Pol, Panel Antenna, 2.6m, 2x 690-960/3x 1695-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2498 x 468 x 168 (98.3 x 18.4 x 6.6)
Weight (Antenna Only),kg (lb)
: 38.3 (84.4)
Connector type
: 10 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 10
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBB3U20_43-C-I20
Panel 10-ports antenna, X-Pol, 2m, 694-960/694-960/1427-2690/1427-2690/1427-2690 MHz, 65deg, 15.6/15.5/18.3/18.5/18.3 dBi, RET, 2-12°/2-12°/2-12°/2-12°/2-12°
Compare
Quick view
Close quick view
APXVBB3U20_43-C-I20
Panel 10-ports antenna, X-Pol, 2m, 694-960/694-960/1427-2690/1427-2690/1427-2690 MHz, 65deg, 15.6/15.5/18.3/18.5/18.3 dBi, RET, 2-12°/2-12°/2-12°/2-12°/2-12°
Antenna End Plate Image
:
Antenna Array Image
:
Dimensions - H x W x D,mm (in)
: 2080 x 483 x 241 (81.9 x 19 x 9.5)
Weight (Antenna Only),kg (lb)
: 50 (110.2)
Connector type
: 10 x 4.3-10 Female at bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 10
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBB4L15B_43-C-I20
12-port X-Pol Antenna, 1.6m, 2x698-960/4x1710-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBB4L15B_43-C-I20
12-port X-Pol Antenna, 1.6m, 2x698-960/4x1710-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1590 x 499 x 199 (62.6 x 19.6 x 7.8)
Weight (Antenna Only),kg (lb)
: 29.1 (64.2)
Connector type
: 12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 12
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBB4L15H2_43-C-I20
12-port X-Pol Antenna, 1.5m, 2x 690-960/4x 1695-2690MHz, 65deg, 16.0/15.3/18.8/19.3/19.1/18.7dBi, 2-12deg, Integrated RET
Compare
Quick view
Close quick view
APXVBB4L15H2_43-C-I20
12-port X-Pol Antenna, 1.5m, 2x 690-960/4x 1695-2690MHz, 65deg, 16.0/15.3/18.8/19.3/19.1/18.7dBi, 2-12deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1498 x 560 x 180 (59 x 22 x 7.1)
Weight (Antenna Only),kg (lb)
: 32.7 (72.1)
Connector type
: 12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 12
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBB4L20B_43-C-I20
12-Ports, X-Pol, Panel Antenna, 2.0m, 2x 698-960/4x 1710-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBB4L20B_43-C-I20
12-Ports, X-Pol, Panel Antenna, 2.0m, 2x 698-960/4x 1710-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2088 x 499 x 199 (82.2 x 19.6 x 7.8)
Weight (Antenna Only),kg (lb)
: 40.5 (89.3)
Connector type
: 12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 12
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBB4L26B_43-C-I20
12-Ports, X-Pol, Panel Antenna, 2.6m, 2x 698-960/4x 1710-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBB4L26B_43-C-I20
12-Ports, X-Pol, Panel Antenna, 2.6m, 2x 698-960/4x 1710-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2690 x 499 x 199 (105.9 x 19.6 x 7.8)
Weight (Antenna Only),kg (lb)
: 47.5 (104.7)
Connector type
: 12 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 12
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBBL15H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 1.5m, 2x 690-960/1x 1695-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBBL15H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 1.5m, 2x 690-960/1x 1695-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1498 x 468 x 168 (59 x 18.4 x 6.6)
Weight (Antenna Only),kg (lb)
: 22.3 (49.2)
Connector type
: 6 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 6
Length m(ft)
: 1.2-1.5 m (4-5 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBBL20H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.0m, 2x 690-960/1x 1695-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBBL20H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.0m, 2x 690-960/1x 1695-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 1998 x 468 x 168 (78.7 x 18.4 x 6.6)
Weight (Antenna Only),kg (lb)
: 27 (59.5)
Connector type
: 6 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 6
Length m(ft)
: 1.6-2.1 m (6-7 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
APXVBBL26H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.6m, 2x 690-960/2x 1695-2690MHz, 65deg, Integrated RET
Compare
Quick view
Close quick view
APXVBBL26H_43-C-I20
6-Ports, X-Pol, Panel Antenna, 2.6m, 2x 690-960/2x 1695-2690MHz, 65deg, Integrated RET
Antenna End Plate Image
:
Antenna Array Image
:
Polarization,Deg
: ±45°
Dimensions - H x W x D,mm (in)
: 2498 x 468 x 168 (98.3 x 18.4 x 6.6)
Weight (Antenna Only),kg (lb)
: 33.4 (73.6)
Connector type
: 6 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
RF Connector Quantity
: 6
Length m(ft)
: 2.4-2.7 m (8-9 ft)
Electrical Tilt Type
: RET (Remote)
Product Type
: Base Station Antennas
Close quick view
Add to my e-catalog
Download PDF datasheet
View related documents
BSA Value Proposition
Add to my e-catalog
See document
See related products
Compare
1
2
