716M-R-716M

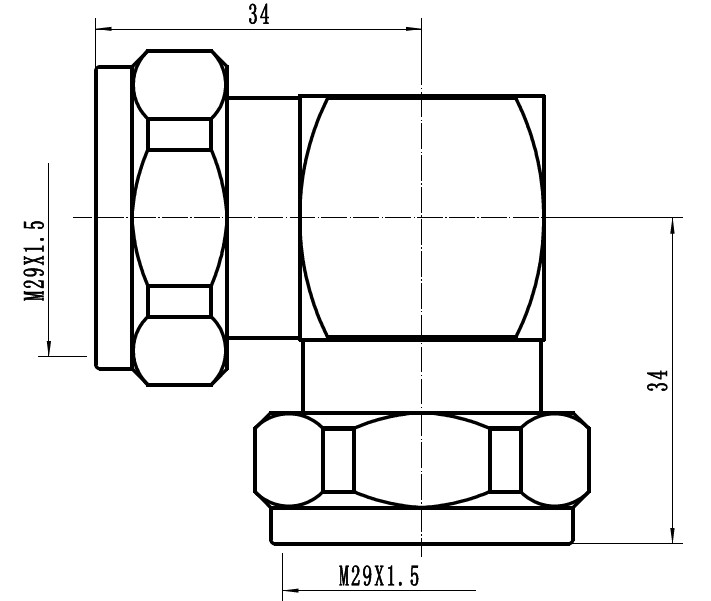

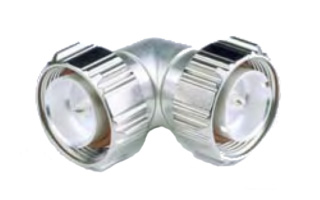

Coaxial Adapter 7-16 male - male, right angle
Rev : C | Rev date : 29 Apr 2024
Coaxial Adapter, 7-16 Male/Male,
Right Angle
FEATURES / BENEFITS
Structure |
|---|
| Product Line | | Coaxial Cable Components | | Product Type | | Coaxial Adapter |
|
Mechanical Specifications |
|---|
| Connector A | | 7-16 DIN Male | | Center Contact Connector A | | Brass, silver plated | | Outer Contact Connector A | | Brass, Tri metal alloy plated | | Connector B | | 7-16 DIN Angle Male | | Center Contact Connector B | | Brass, silver plated | | Outer Contact Connector B | | Brass, Tri metal alloy plated | | Dielectric | | PTFE | | Sealing class | | IP68, connected |
|
Electrical Specifications |
|---|
| Frequency Range - MHz | | DC - 6000 | | VSWR, Return Loss | VSWR (dB) | 0-2000 MHz: 1.05 (32.25)
2000-3000 MHz: 1.08 (28.3)
3000-6000 MHz: 1.12 (24.94) | | Insertion Loss, dB (Max) | dB | 0.05 | | 3rd Order IM Product @ 2x20 Watts | dBc | < -163 |
|
Temperature Specifications |
|---|
| Operation Temperature | °C (°F) | -45 to 85 (-49 to 185) |
|
Packaging Information |
|---|
| Package Quantity | | 1 |
|
