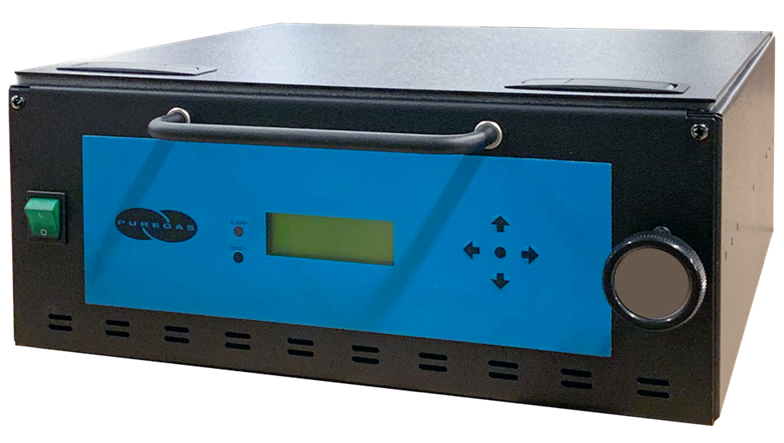

BD210WLP Series Dehydrators
Max Capacity 200 SCFD (238L/h), Output Pressure 0.3 to 7.5 PSI (2.1 to 51.7 KPa) Field Adjustable, Single Pressure Outlet, with Real-Time Remote Management, Support Rack and Wall Mount

Rev : 4 | Rev date : 09 Jan 2024

PRODUCT DESCRIPTION

The BD210WLP series of low pressure dehydrators may be used to pressurise broadcast antennas and transmission lines. Low pressure systems (suffix LP) are also used for applications where reduced pressure is required, for example, pressurisation of broadcast antenna radomes.

The dehydrator removes the moisture from damp ambient air to deliver a reliable, constant, on-demand source of dry, pressurised air.

The inherent reliability, compact size and remote real-time data capabilities make the BD210WLP series dehydrators an ideal choice for pressurisation of small or unattended sites.

The BD210WLP Series dehydrators employ a fully digital operating platform offering the most accurate readings of operating variables, either from the front panel or by a remote connection.

FEATURES / BENEFITS

Air Delivery up to 200 SCFD
Remote Real-time Data and Alarm Reset Capabilities
SNMP Communication Compatible
Digital Display of all Operating Parameters
Compact & Lightweight
Ultra Quiet Swing-Piston Compressor
Versatile Mounting & Installation Options
Operating pressure can be changed by a simple adjustment at the dehydrator
Easy Slide Rail Mounting Kit Included (not with BD210WLP-V)
Vertical Wall Mount Bracket Included with BD210WLP-V ONLY

Details
Product Type		Automatic Dehydrator

Specifications
		BD210WLP / BD210WLP-V	BD212WLP / BD212WLP-V
Output Capacity	l/hr (SCFD)	236 (200) @ 100% Duty Cycle
Power Requirements		110 - 125 VAC, 50 / 60Hz	208 - 253 VAC, 50 / 60Hz
Operating Current	A	1	0.5
Outlet Pressure Range	kPa (PSIG)	2.1 - 51.7 (0.3 - 7.5)
Outlet Air Relative Humidity		Less than 2% RH. Less than -40°F/C Dewpoint
Compressor Type		Oil-less Piston Type
Dehydrating Method		Heatless Desiccant
Environment Operating Temperature Range	°C (°F)	5°-30° (40°-85°) Ambient
Noise Level at 3m (10 ft)	dBA	48
Alarms		Low pressure, High pressure, Humidity, Excess run-tim, High duty circle, High internal temperature, and Maintenance reminder
Outlet Connections		3/8" Press-to-Lock tube fitting
Dimensions Depth x Width x Height	cm (in)	49.27 x 40.97 x 17.15 (19.39 x 16.13 x 6.75) *BD210WLP-V mounted 17.15 x 40.97 x 49.27 (6.75 x 16.13 x 19.39)
Weight	kg (lb)	19 (42)

Accessories
Description		Model
12 Month Maintenance Kit		P017612
Wall Mounting Kit (BD210/212 Only)		P017460
Rack Mounting Kit (BD210/212 Only)		P017703
48VDC-120VAC Inv Kit-Unit Mnt (All BD210)		P017435
48VDC-230VAC Inv Kit-Unit Mnt (All BD212)		P017436
48VDC-120VAC Inv Kit-Rack Mnt (All BD210)		P017437
48VDC-230VAC Inv Kit-Rack Mnt (All BD212)		P017436
Dehydrator Start-up kit (without manifold)	[Note 1]	GLK-1
2-Port Manifold with Pressure Gauges		PWM2G
2-Port Manifold with Pressure Gauges & Check Valves	[Note 2]	PWM2GC
2-Port Manifold Start-Up Kit	[Note 1]	MLK-2
4-Port Manifold with Pressure Gauges		PWM4G
4-Port Manifold with Pressure Gauges & Check Valves	[Note 2]	PWM4GC
4-Port Manifold Start-Up Kit	[Note 1]	MLK-4
8-Port Manifold with Pressure Gauges		PWM8G
8-Port Manifold with Pressure Gauges & Check Valves	[Note 2]	PWM8GC
8-Port Manifold Start-Up Kit	[Note 1]	MLK-8
Single Pipe Panel		P8741SFM
Dual Pipe Panel		P8741DFM
Flow Distribution Panel		PFMP2310

Note:
1. For details of all GLK and MLK kits, refer separate datasheet.
2. Manifold units with check valves are not recommended for pressurising antennas with dual feedlines.
