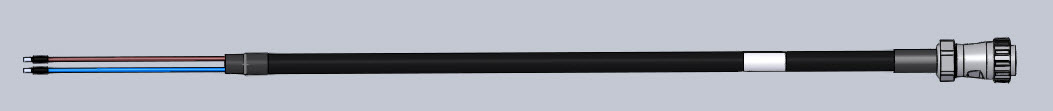

HA-DCJMP-BM-10-XX
HYBRIFLEX® Power Jumper
Rev : C (P | Rev date : 22 Jul 2020
RFS' HYBRIFLEX ™ cabling solution for Remote Radio Head (RRU) combines optical fiber and DC power for RRUs in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and cost at Cellular sites.
HYBRIFLEX™ cabling solutions allows mobile operators deploying RRH architecture to standardize RRH installation process and eliminates the need for and the cost of cable grounding.
FEATURES / BENEFITS
Structure |
|---|
| Cable Type | | Power Jumper |
|
Mechanical Specifications |
|---|
| Outer Diameter Nominal | mm (in) | 12.5 (0.492) | | Cable Weight | kg/m (lb/ft) | 0.28 (0.18) | | Minimum Bending Radius, (Operating) | mm (in) | 70 (2.72) | | Minimum Bending Radius, (Installation) | mm (in) | 125 (4.92) |
|
DC Power Cable Specifications |
|---|
| Number of DC Pairs | | 1 | | Maximum DC-Resistance Power Cable | Ω/km (Ω/kft) | 1.91 (0.57) | | Cross Section of Power Cable | mm² (AWG) | 10 (7) | | DC Wire Jacket Material | | Polyethylene, PE | | DC Wire Jacket Thickness | mm (in) | 0.45 (0.02) | | DC Cable Single Bending Radius | mm (in) | 51 (2.01) | | DC Cable Diameter | mm (in) | 5.1 (0.2) | | DC Standards (Meets or Exceeds) | | IEC 60232 | | DC Cable sealing method | | With Outdoor Usable Power Connector |
|
Cable Jacket |
|---|
| UV-Protection Individual and External Jacket | | Yes | | Jacket Material | | PE |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | Power Jumper |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -40 to 80 (-40 to 176 ) | | Operation Temperature | °C (°F) | -40 to 80 (-40 to 176 ) | | Installation Temperature | °C (°F) | -20 to 50 (-4 to 122 ) |
|

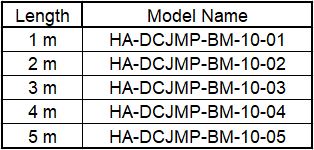

Other Length on request
