I-ATO5-43-698/3800M
Indoor Omnidirectional MIMO Antenna 698-3800 MHz
Rev : DRAF | Rev date : 15 May 2018
The omnidirectional MIMO antenna I-ATO5-43-698/3800M is designed for broadband in-building DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks. The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.
FEATURES / BENEFITS
Wideband omnidirectional MIMO antenna, supporting all wireless services in the frequency bands 698-960/1427-2700MHz/3400-3800MHz
- Typically used in indoor distribution of 2G / 3G / 4G / 5G wireless services in all standardized frequency bands
- PIM optimized antenna design (-153dBc @2x20W)
Aesthetical visual appearance, compact and light weight
Low return loss, stable performance
Pigtail with 4.3-10 female connector
Ceiling mounting
I-ATO5-43-698/3800M
General Specifications |
|---|
| Product Type | | Omnidirectional Antenna | | Techn. Application | | Indoor |
|
Mechanical Specifications |
|---|
| Number of Input Ports | | 2 | | Connectors | | 4.3-10 female | | Connector Cable | mm (in) | 300 (11.8) | | Height (Less Connectors) | mm (in) | 18 (0.7) | | Diameter (Less Connectors) | mm (in) | 4.3 () | | Width (Less Connectors) | mm (in) | 140 (5.5) | | Length (Less Connectors) | mm (in) | 290 (11.4) | | Weight | kg (lb) | 0.4 (0.18) |
|

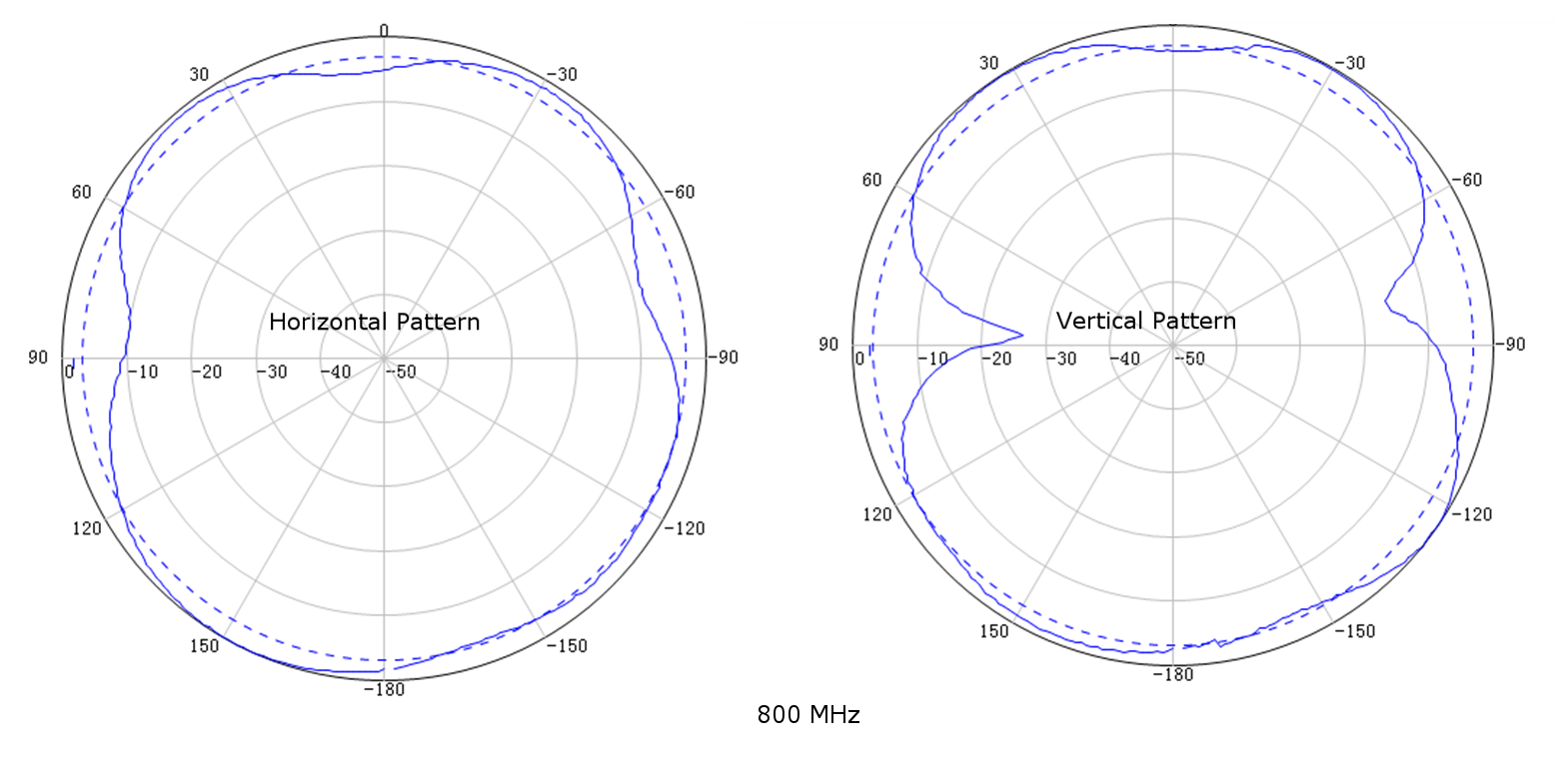

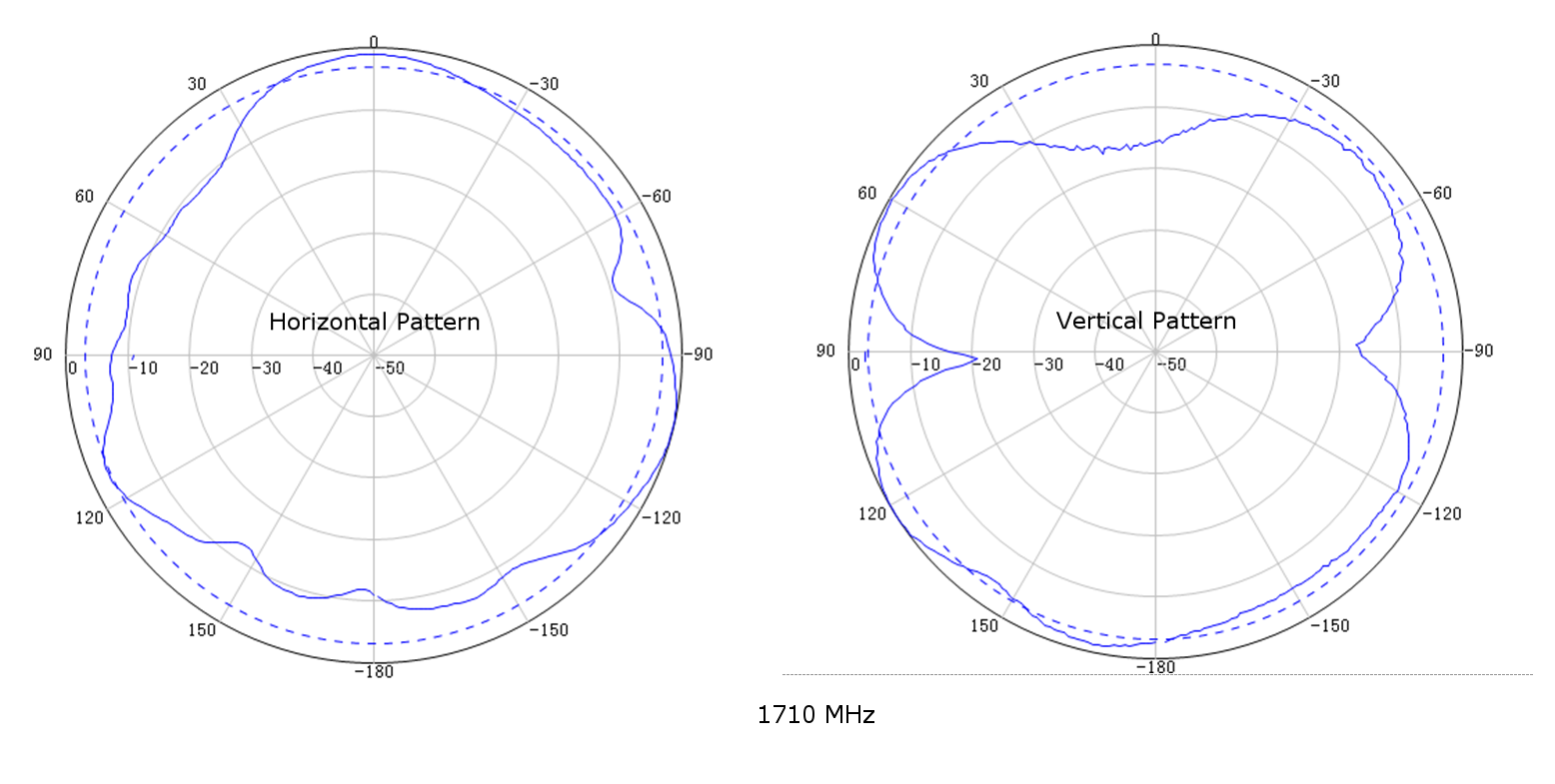

Electrical Specifications |
|---|
| Frequenz |
MHz |
698-960 |
1427-1710 |
1710-2700 |
3400-3800 |
| Gain, typ |
dBi |
2.5 |
4.0 |
4.5 |
5.0 |
| VSWR |
|
1.8 |
1.8 |
1.8 |
1.8 |
| Impedance, Ohm | Ω | 50 | | Polarization | | 2x linear | | Intermodulation (IM3) | | -153 dBc (2 x 43dBm) | | Total Input Power max. | W | 50 |
|
Material |
|---|
| Radome Material | | ABS | | Radome Color | | White ( RAL 9003 ) |
|
Temperature Specifications |
|---|
| Operation Temperature | °C (°F) | -40 to 55 (-40 to 131 ) |
|
Testing and Environmental |
|---|
| Environmental Class | | Indoor |
|
