I-ATP5-43-698/4000M
Indoor Panel MIMO Antenna 698-4000 MHz
Rev : C | Rev date : 02 Apr 2019
The panel antenna I-ATP5-43-698/4000M is designed for broadband in-building DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks.
The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.
FEATURES / BENEFITS
Wideband panel antenna supporting the frequency bands 698-960/1710-2700 / 3400-4000MHz
Typically used in indoor distribution of 2G/3G/4G/5G wireless services in all standardized frequency bands
- Low return loss, High gain, Stable performance.
PIM optimized antenna design (-153dBc @2x20W)
Aesthetical visual appearance, compact and light weight
Pigtail with 4.3-10 female connector
Ideal for 4G LTE multi-band MIMO applications
I-ATP5-43-698/4000M
General Specifications |
|---|
| Product Type | | Panel Antenna | | Techn. Application | | Indoor |
|
Mechanical Specifications |
|---|
| Number of Input Ports | | 2 | | Connectors | | 4.3-10 female | | Mounting Hardware included | | Wall bracket, screws | | Height (Less Connectors) | mm (in) | 62 (2.44) | | Diameter (Less Connectors) | mm (in) | 4.3 () | | Width (Less Connectors) | mm (in) | 180 (7.1) | | Length (Less Connectors) | mm (in) | 403 (15.9) | | Weight | kg (lb) | 1.5 (3.3) |
|
Electrical Specifications |
|---|
| Frequency |
MHz |
698 - 806 |
806 - 960 |
1710 - 2170 |
2200 - 2700 |
3400 - 4000 |
| Gain, typ. |
dBi |
5.0 |
6.0 |
7.0 |
7.5 |
8.5 |
| max. VSWR |
|
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
| Beam width, Vertical, typ. |
° |
73 |
70 |
60 |
60 |
30 |

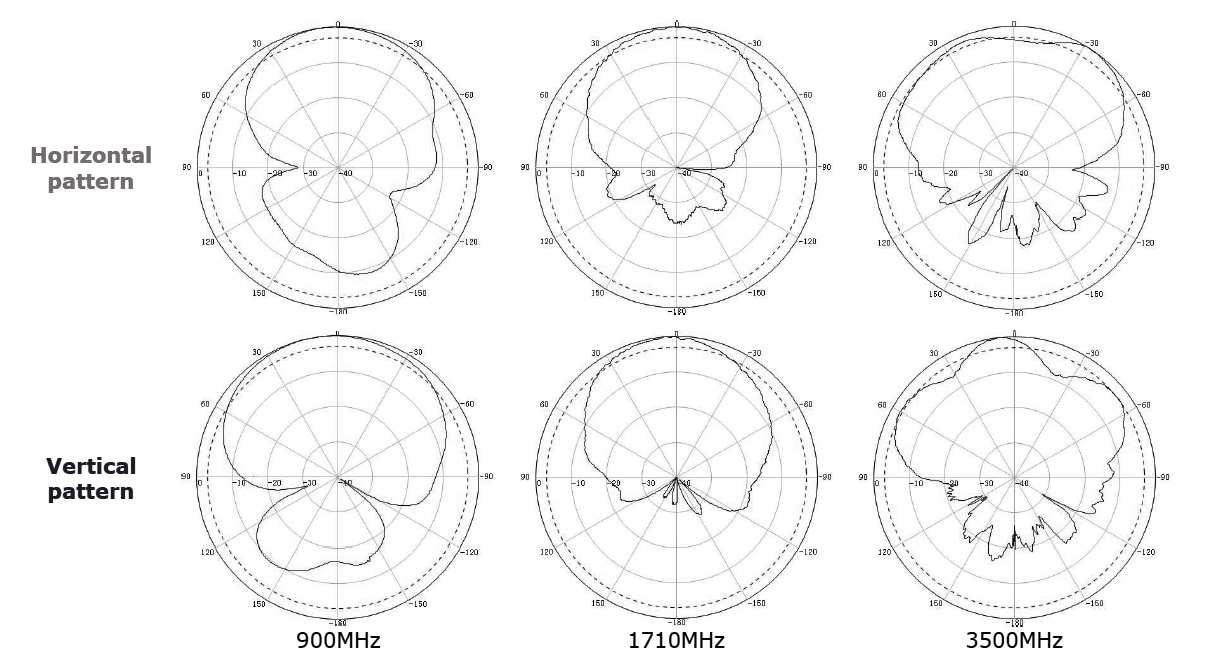

| Beam width, Horizontal, typ. |
° |
80 |
80 |
65 |
60 |
55 |
| Impedance, Ohm | Ω | 50 | | Polarization | | Vertical and horizontal | | Intermodulation (IM3) | | - 153dBc with 2 x 20W | | Total Input Power max. | W | 50 |
|
Material |
|---|
| Radome Material | | ABS | | Radome Color | | White (RAL 9003) |
|
Temperature Specifications |
|---|
| Operation Temperature | °C (°F) | -40 to 55 (-40 to 131 ) |
|
Testing and Environmental |
|---|
| Environmental Class | | Indoor |
|
