JUMPER-MQX
CELLFLEX® Factory-Fit MQX Jumper Assembly, 1/4" Superflexible Foam

Rev : A | Rev date : 08 Dec 2020
Radio Frequency Systems' MQX(Multiple Ports Quick Connector) Jumper features supperflexible 1/4"" multiple-stranded coaxial cables;matches with NM,NF,4.3-10 Male,4.3-10 Female, 7-16 Male,7-16 Female,NEX10 connectors on one side, MQ4 or MQ5 connector soldered on the other side. The progressive welding technique guarantees its stability and excellent exectrical performance.

FEATURES / BENEFITS

  • Ingenious Design facilitates fast installation and deployment
  • Waterproof to IP 67 . No downtime risk, secures revenue.
  • Stable Structure guarantees excellent consistency
  • Stable VSWR, outstanding and consistent intermodulation performance
  • Compliant to RoHS (EU) and CRoHS (China)


Technical features

Structure

Cable Type1/4" Superflexible Foam
Jumper TypeFactory-Fit
Connector AMQ4 or MQ5
Center Contact Connector ABeryllium copper,Silver plated
Outer Contact Connector ABeryllium copper,Silver plated
Coupling Nut Connector ABrass,Sn-Ni Binary Alloy
Connector BN Male,N Female,4.3-10 Male,4.3-10 Female, 7-16 Male,7-16 Female,NEX10 Male
Jacket
Black Polyethylene, Halogen-free (Flame Retardant for option)

Mechanical Specifications

Minimum Bend Radius mm (in)25 (1)

Testing and Environmental

Sealing classIP67

Temperature Specifications

Installation Temperature°C (°F)-25 to 60 (-13 to 140 )
Operation Temperature°C (°F)-40 to 70 (-40 to 158 )
Storage Temperature°C (°F)-40 to 70 (-40 to 158 )

Electrical Specifications

Intermodulation, 3rd Order dBc≤ -155
VSWR, Return LossVSWR (dB)≤ 1.100 (26.5) @ 30 - 2200 MHz
≤ 1.120 (25) @ 2200 - 2700 MHz
≤ 1.160 (22.6) @ 2700 - 3300 MHz
≤ 1.200 (21) @ 3300 - 4200 MHz
≤ 1.250 (19) @ 4200 - 5000 MHz
≤ 1.350 (16) @ 5000 - 6000 MHz

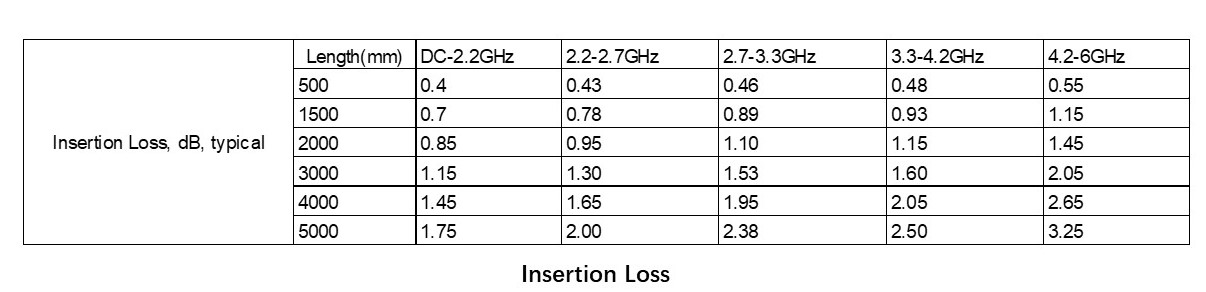

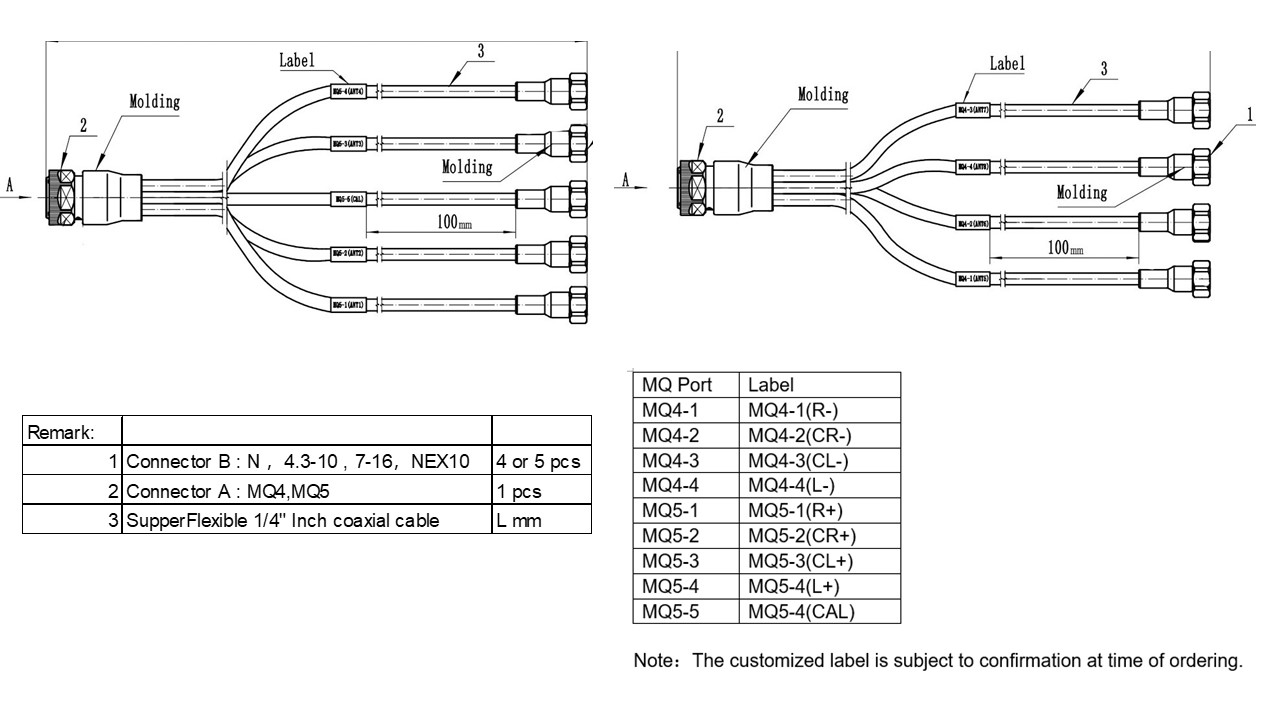

Drawings and Label

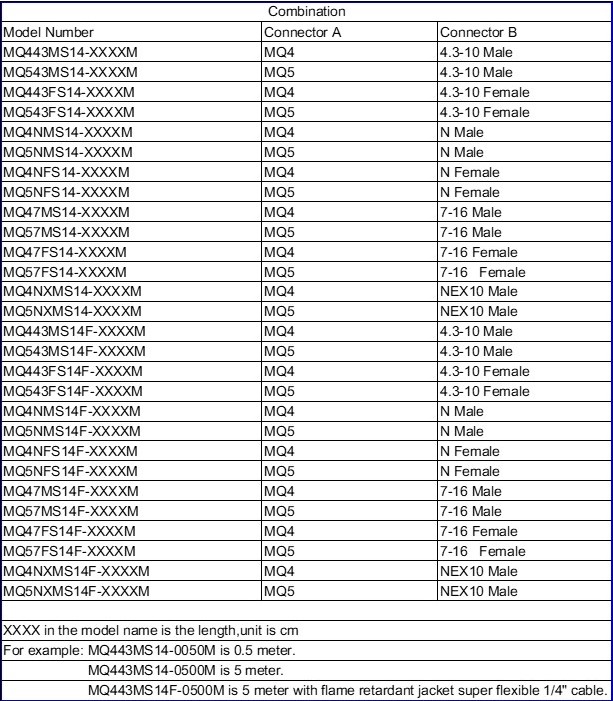

MQX Model Number
