MKD-21

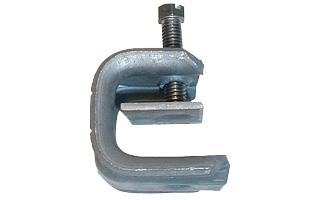

Universal Installation Cleat

Rev : A | Rev date : 03 Feb 2023

Hot dip galvanized universal installation cleat with two threads M8

FEATURES / BENEFITS


Technical features

Structure

Product LineElliptical Waveguide Accessories
Coaxial Cable Accessories
Product TypeInstallation Hardware
Hanger TypeCleat - clamp

Mechanical Specifications

Angle member adapter clamping range mm (in)6 - 21 (0.23 - 0.83 )
Angle member adpter threadsM8
MaterialClamp: Hot dip galvanized steel
Screw: Stainless steel

Packaging Information

Package Quantity10
Weight per piece kg (lb)0.19 (0.42)
Weight per kit kg (lb)2 (4.4)

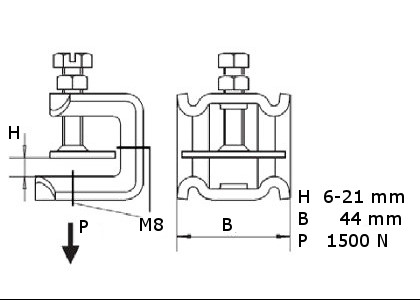

Dimensions

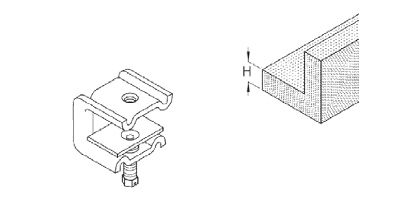

Installation Example

External Document Links

Notes
