MULTIFLEX-L78
CELLFLEX®MULTIFLEX Jumper Assembly with low loss coax, LCF78 feeder
Rev : P2 | Rev date : 16 Sep 2021
MULTIFLEX Jumper-Cable assemblies are the simple solution for those who like to have a very low loss transmission jumper with highest flexibility at both connection ends. RFS Technologies site kitting services offers a full assembled Jumper containing feeder-cable from LCF78-50 to LCF158-50, and Jumper cable such as super flexible SCF12-50 for both endings.
FEATURES / BENEFITS
- Stable premium VSWR, outstanding and consistent intermodulation performance - 4.3-10 side not relying on coupling torque
Improves network performance, reduces the number of dropped calls and avoids revenue loss.
- Waterproof to IP 68
No downtime risk, secures revenue.
- Smaller connector footprint for 4.3-10
Enables tighter spacing of connections for antennas and RRHs.
- Available with standard ""J"" or flame retardant ""JFN"" jacket types
Usable on global basis in all applications.

7MRS12-7MRS12-L78J0200
Jumper Features |
---|
Application | | Main feed transitions to equipment, GPS lines, intended for outdoor usage (J) or indoor usage (JFN) | Installation Temperature | °C (°F) | -40 to 60 (-40 to 140 ) | Storage Temperature | °C (°F) | -70 to 85 (-94 to 185 ) | Operation Temperature | °C (°F) | -50 to 85 (-58 to 185 ) | Fire Performance Class | | Halogeen free (B2ca option available) | Sealing Class | | IP68 | RoHS | | Compliant to RoHS (EU) and CRoHS (China) | Third Order Intermodulation | dBc | -161 static & dynamic (-165 typical) | Maximum Operating Frequency | GHz | 6 |
|
Cable Details |
---|
Cable Type | LCF78-50 | SCF12-50 | Cable weight | 0.35 Kg/m (0.23 lb/ft) | 0.135 Kg/m (0.09 lb/ft) | Min bending radius, single bending | 120 mm (5 in) | 32 mm (1.3 in) | Min bending radius, multiple bending | 250 mm (10 in) | 32 mm (1.3 in) | bending moment | 13 Nm (10 lb*ft) | 2.5 Nm (1.84 lb*ft) | Tensile strength | 1440 Nm (324 lb) | 650 Nm (146 lb) | Recommended maximum clamp spacing | 0.8 / 1 m (2.75 / 3.25 ft) | 0.3 / 0.5 m (1 / 1.64 ft) | Velocity factor | 88 % | 77 % | Capacitance | 74 pF/m (22.5 pF/ft) | 86 pF/m (26 pF/ft) | Jacket Spark tested up to: | 8000 V RMS | 5000 V RMS | Inner conductor DC resistance | 2.04 Ω/Km (0.62 Ω/ 1000 ft) | 2.97 Ω/Km (0.9 Ω/ 1000 ft) | Outer conductor DC resistance | 2 Ω/Km (0.61 Ω/ 1000 ft) | 6.5 Ω/Km (1.98 Ω/ 1000 ft) |
|

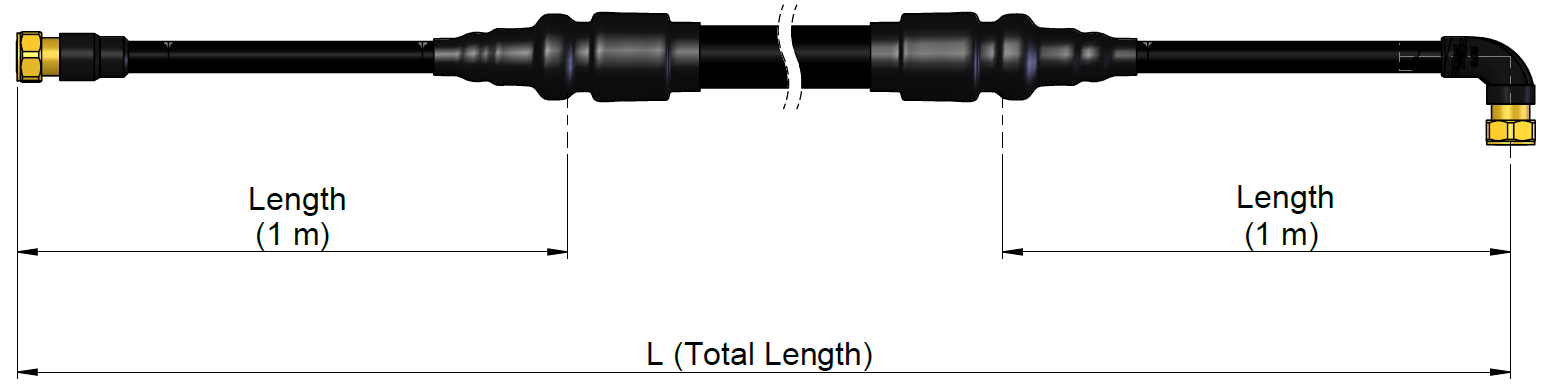

Schematic sktech of a MULTIFLEX Jumper. The total assembly length "L" is defined by the variable length of the feeder cable plus 2 m jumper lengths.
Electrical Performance |
---|
Insertion loss @20°C (A = L*A1 + 2*A2) | Adjustable LCF78 feeder (A1) | 1m Jumpers (A2 ) | Attenuation @1 GHz | 0.04 dB/m | 0.20 dB | Attenuation @2.2 GHz | 0.062 dB/m | 0.315 dB | Attenuation @2.7 GHz | 0.070 dB/m | 0.352 dB | Attenuation @3.8 GHz | 0.086 dB/m | 0.423 dB | Attenuation @6 GHz | 0.113 dB/m | 0.543 dB | Frequency [MHz] | Straight Con. dB (VSWR) | Angle Con. dB (VSWR) | 0 - 1000 | > 28.0 (≤1.08) | > 28.0 (≤1.08) | >1000 - 1700 | > 28.0 (≤1.08) | > 26.4 (≤1.10) | >1700 - 2200 | > 28.0 (≤1.08) | > 26.4 (≤1.10) | >2200 - 2700 | > 26.4 (≤1.10) | > 24.9 (≤1.12) | >2700 - 3800 | > 23.1 (≤1.15) | > 20.8 (≤1.20) | >3800 - 5000 | > 20.8 (≤1.20) | > 19.1 (≤1.25) | >5000 - 6000 | > 17.7 (≤1.30) | > 17.7 (≤1.30) |
|

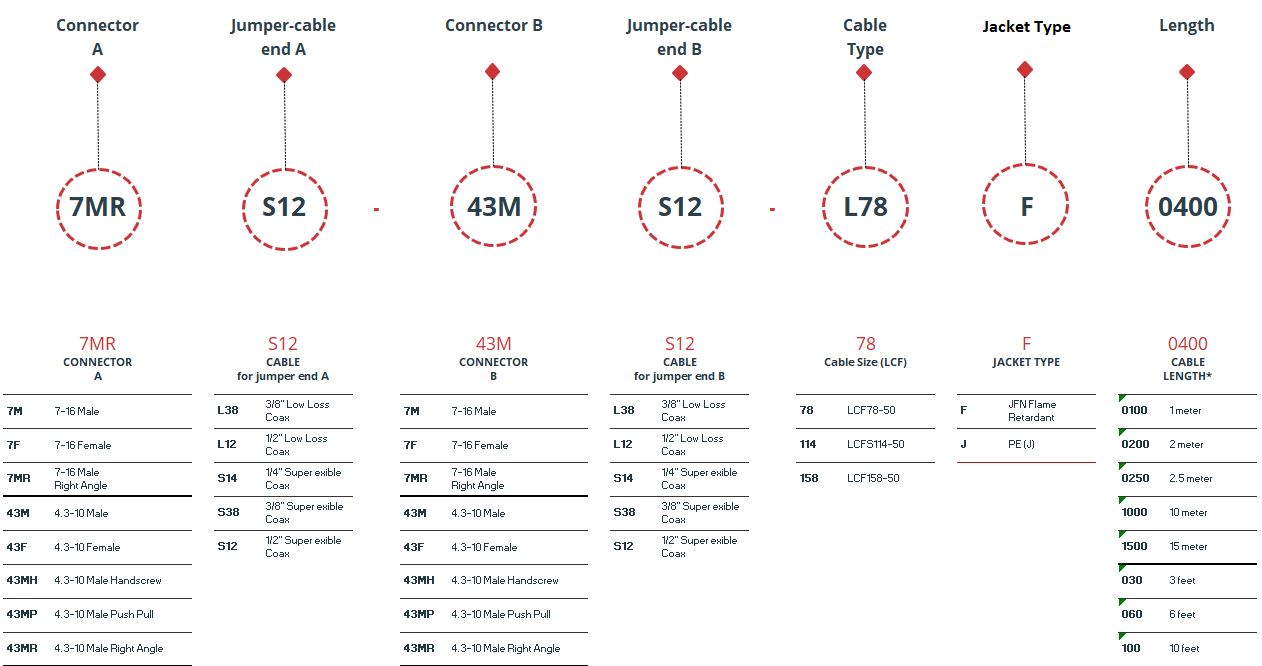

Modelname nomenclature
