TER-E-3800-100W
Load, N-male, 100 Watt

Rev : B | Rev date : 12 Feb 2020

The TER* 3800MHz Series consists of coaxial loads which operate from DC up to 3800MHz. The products are ideally suited for termination of unused ports in distributed antenna systems or in RADIAFLEX® radiating cables systems.

FEATURES / BENEFITS

  • Ideal for all kind of DAS applications
  • Finned termination for heat disspation
  • Low VSWR

Technical features

General Specifications

Product TypeLoad
Techn. ApplicationIndoor

Electrical Specifications

Frequency Range MHz0 - 3800MHz
Impedance Ohm50
Max. VSWR / Return Loss, dBVSWR/dB/19
Total Input Power W100

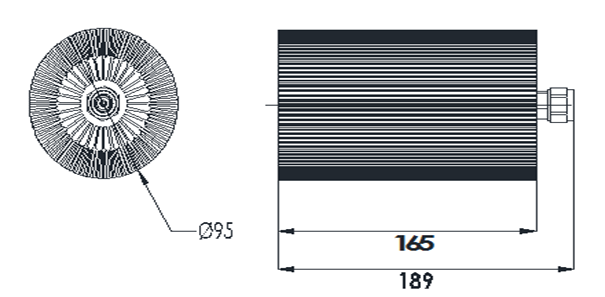

Mechanical Specifications

Input Connector TypeN male
Diameter mm (in)95 (3.74)
Length mm (in)189 (7.44)

Temperature Specifications

Temperature Range °C (°F)-25 to 50 (-13 to 122)
Environmental ClassIndoor
