TPS-E Public Safety Tapper Series
Public Safety Tapper/Unequal Divider for Wireless & Indoor Application, Support VHF, UHF, TETRA, and 700-900MHz Public Safety Bands with various coupling value from 3dB to 20dB

Rev : B | Rev date : 22 Nov 2022

PRODUCT DESCRIPTION

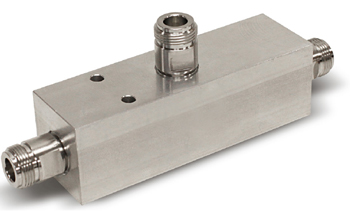

RFS TPS-E Public Safety series Tapper/Unequal Divider have been designed for a variety of wireless applications covering VHF, UHF, TETRA and 700 to 900MHz Public Safety bands. The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across the specified bands. The unit couples off a defined fraction of a RF signal from 3 to 20 dB with minimal reflections or loss. The broad frequency range is ideally suited for Public Safety systems.

FEATURES / BENEFITS

  • Public Safety bands 137MHz-960MHz
  • N Female Interface
  • PIM Optimized Design (161dBc @2x43dBm)
  • Low Insertion Loss
  • High Power Handling
  • Small Size, Low Weight
  • Bracket supplied

TECHNICAL FEATURES

Electrical Specifications

Frequency Range MHz 137-960
Power Rating W 500
Peak Power W 3000
PIM 3rd @2*43 dBm dBc 161
Input Impedance Ohm 50

Mechanical Specifications

Connectors   N Female

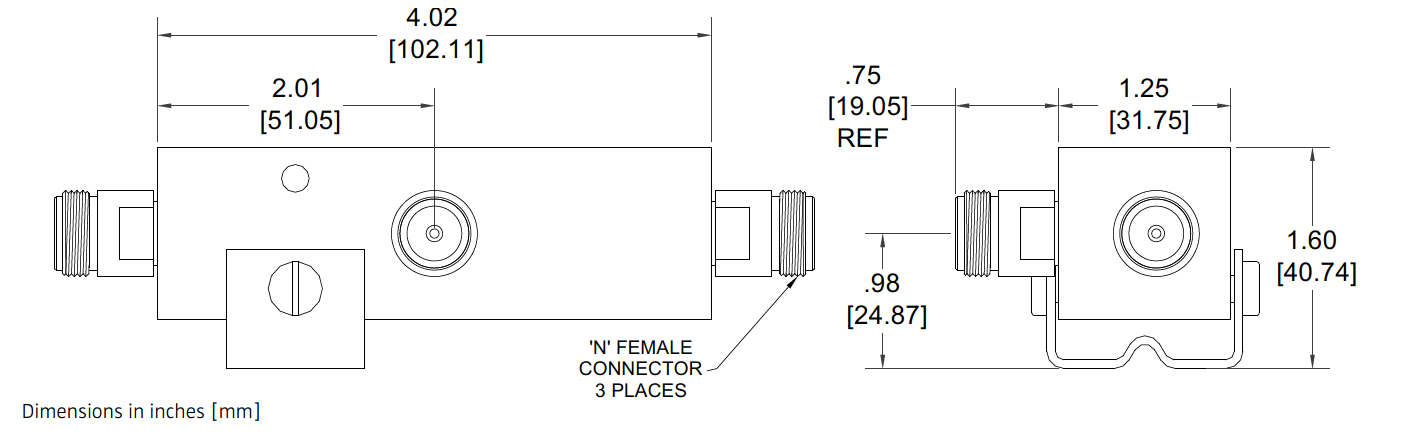

Dimensions, L*W*H mm(in) 102.11*40.74*50.8
(4.02*1.6*2)
Net Weight ±10% kg (lb) 0.38(0.84)
Temperature Range °C -35 to +75 (+160 for 2hours in an event of fire, encased in DragonSkin Cabinet)
IP Level   IP67
RoHS   Compliant

Model Number Specifications

Model Number   TPS3E-137/960 TPS6E-137/960 TPS10E-137/960 TP15E-137/960
VSWR

1.4:1@147-380MHz

1.3:1@380-960MHz

1.3:1@147-380MHz

1.25:1@380-960MHz

1.2:1@147-380MHz

1.2:1@380-960MHz

1.2:1@147-380MHz

1.2:1@380-960MHz

Coupling Loss dB 3.0 6.0 10.0 15.0
Coupling to Branch arm dB

-6.3+/-0.7@137-200MHz

-5.8+/-0.6@200-250MHz

-5.4+/-0.6@250-380MHz

-5.1+/-0.6@380-520MHz

-4.8+/-0.5@698-960MHz

-8.1+/-0.7@137-200MHz

-7.6+/-0.6@200-250MHz

-7.3+/-0.6@250-380MHz

-7.0+/-0.6@380-520MHz

-6.5+/-0.5@698-960MHz

-11.0+/-0.8@137-200MHz

-10.7+/-0.7@200-250MHz

-10.3+/-0.7@250-380MHz

-10.1+/-0.7@380-520MHz

-9.9+/-0.5@698-960MHz

-16.0+/-0.8@137-200MHz

-15.6+/-0.8@200-250MHz

-15.5+/-0.8@250-380MHz

-15.2+/-0.8@380-520MHz

-15.4+/-0.5@698-960MHz

Output Split, Main/Branch dB

-1.8/-4.8

-1.0/-7.0 -0.4/-10.4 -0.1/-15.1

Model Number Specifications

Model Number   TPS20E-137/960
VSWR

1.2:1@147-380MHz

1.2:1@380-960MHz

Coupling Loss dB 20.0
Coupling to Branch arm dB

-20.3+/-1.0@137-200MHz

-20.1+/-1.0@200-250MHz

-20.0+/-1.0@250-380MHz

-20.1+/-1.0@380-520MHz

-20.1+/-0.8@698-960MHz

Output Split, Main/Branch dB -0.1/-20.1
