HB012-S-06U1-S4C20
Screened Hybrid Cable, 1 x 6mm² pair power cable and 8 x singlemode optical fibers
Rev : A | Rev date : 07 Mar 2023
A hybrid cable designed to transmit both electrical power and optical signals in a single cable.

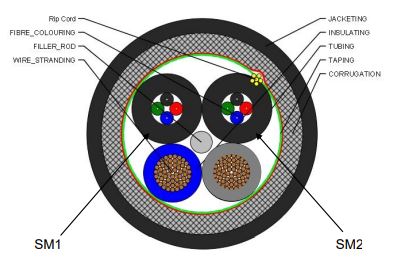

Two electrical power conductors and two fibre optic sub units, each containing four bend insensitive singlemode fibers surround a non metallic strain member.
A polyethylene UV stable jacket ensures long term operation in outdoor applications.
The fully circular construction ensures that the cable can be efficiently installed in conventional trays or ducting systems.
A corrugated aluminium screen ensures a 100% screen, enabling this cable to be installed in data and power cable ducts
FEATURES / BENEFITS
- Circular construction prevents snagging during installation
- Bend insensitive optical fiber simplifies installation and termination
- Singlemode fiber provides the ultimate future proof support for high bandwidth services
- Corrugated screen provides the ultimate cable routing flexibility
- Water penetration (no leakage) up to 1m/24h optical core
- Suitable for Indoor/outdoor applications
Hybriflex Bulk cable dia.012", Screened- DC wire dia 06mm² Unshielded, 1 DC Pair, SM x 4-pairs, CPR Jacket
